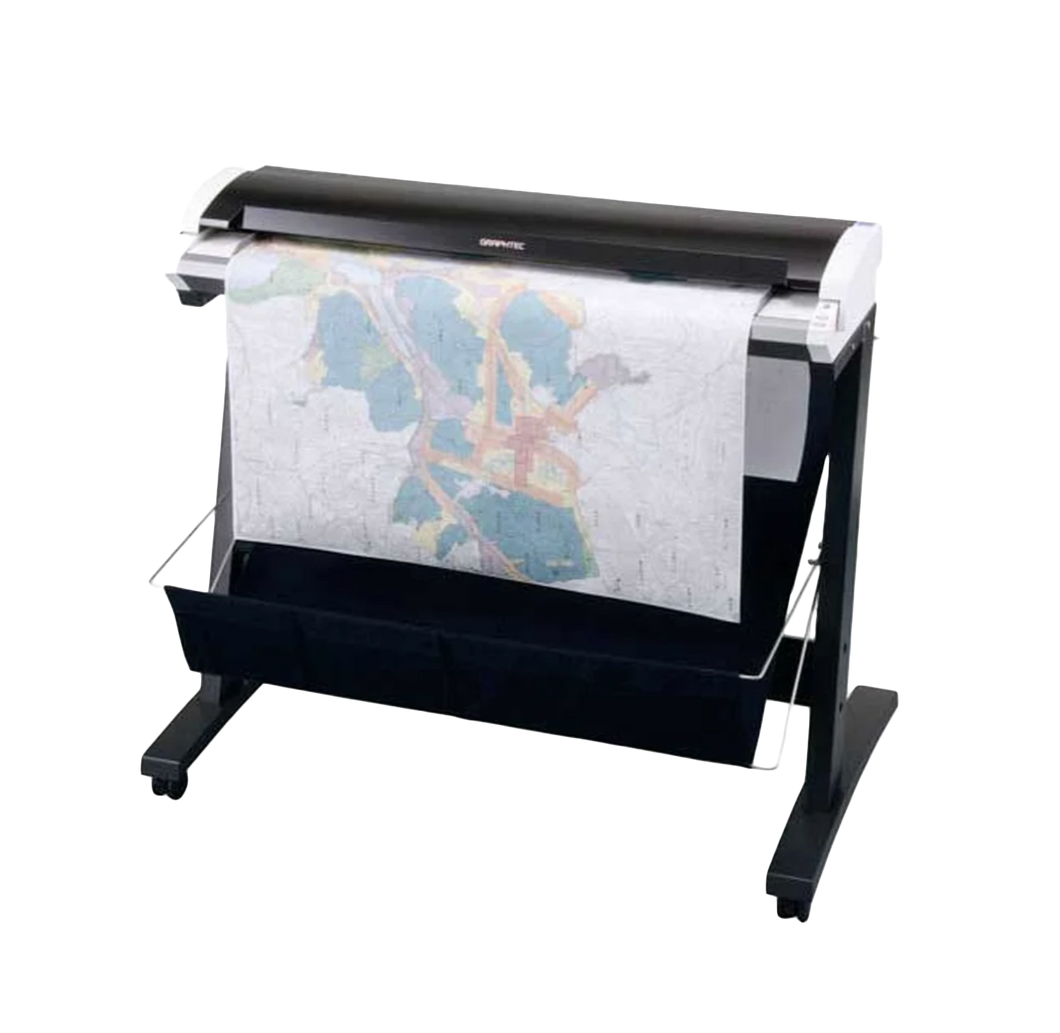

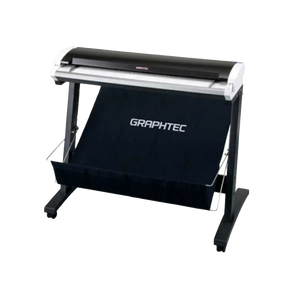

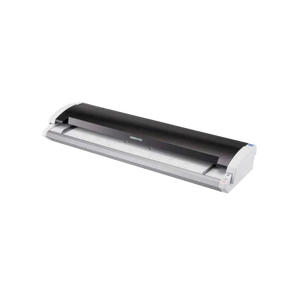

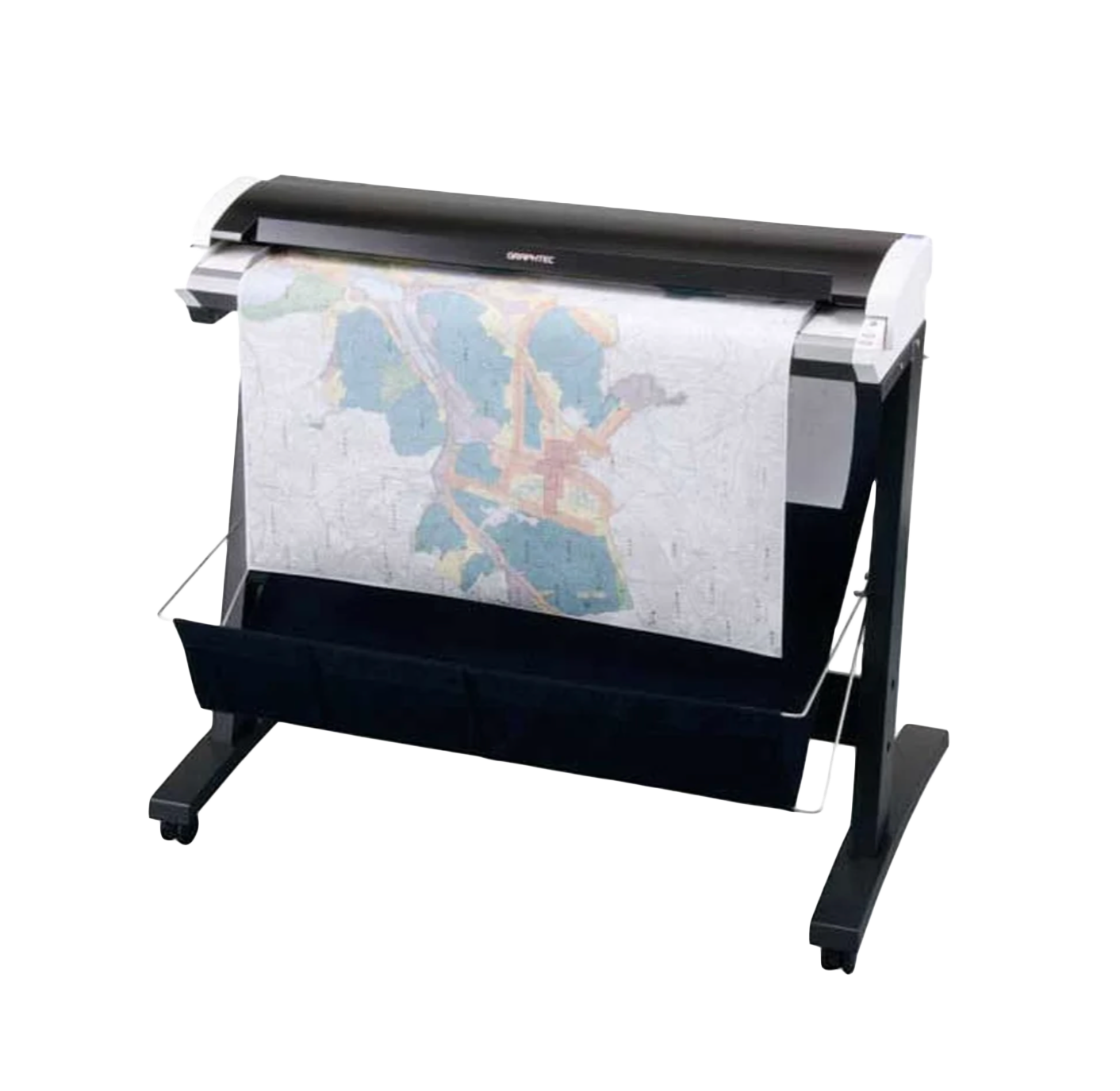

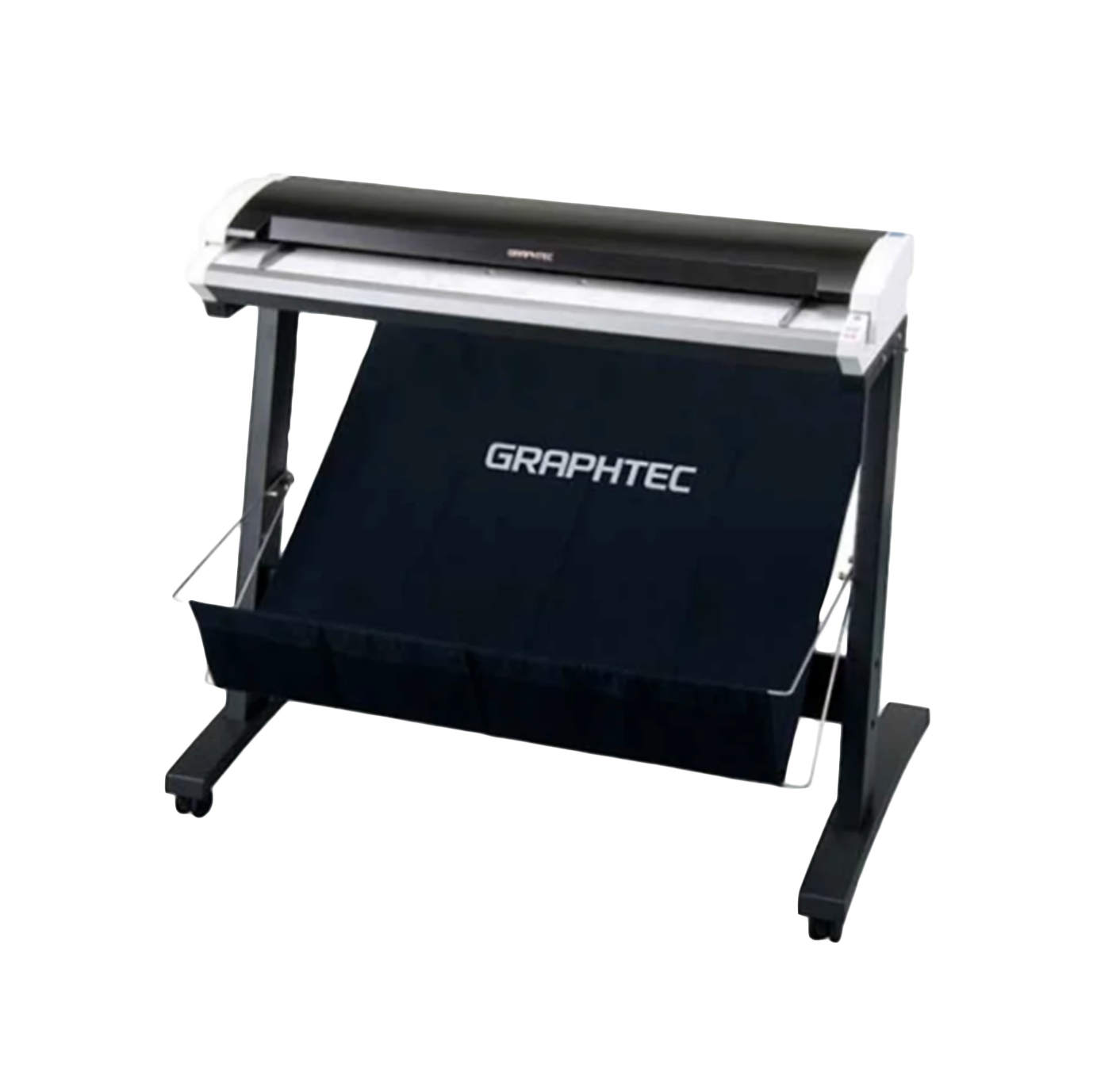

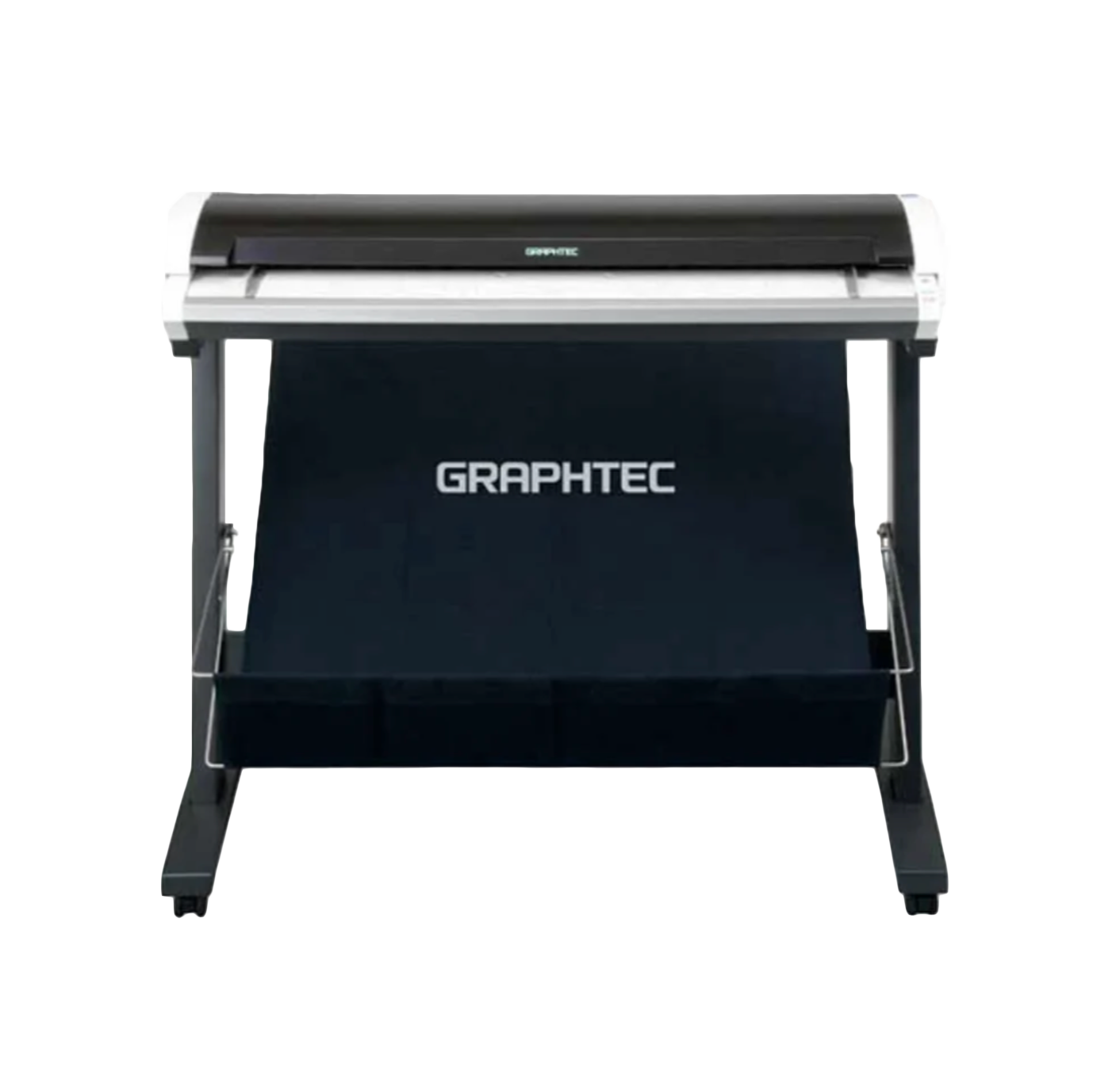

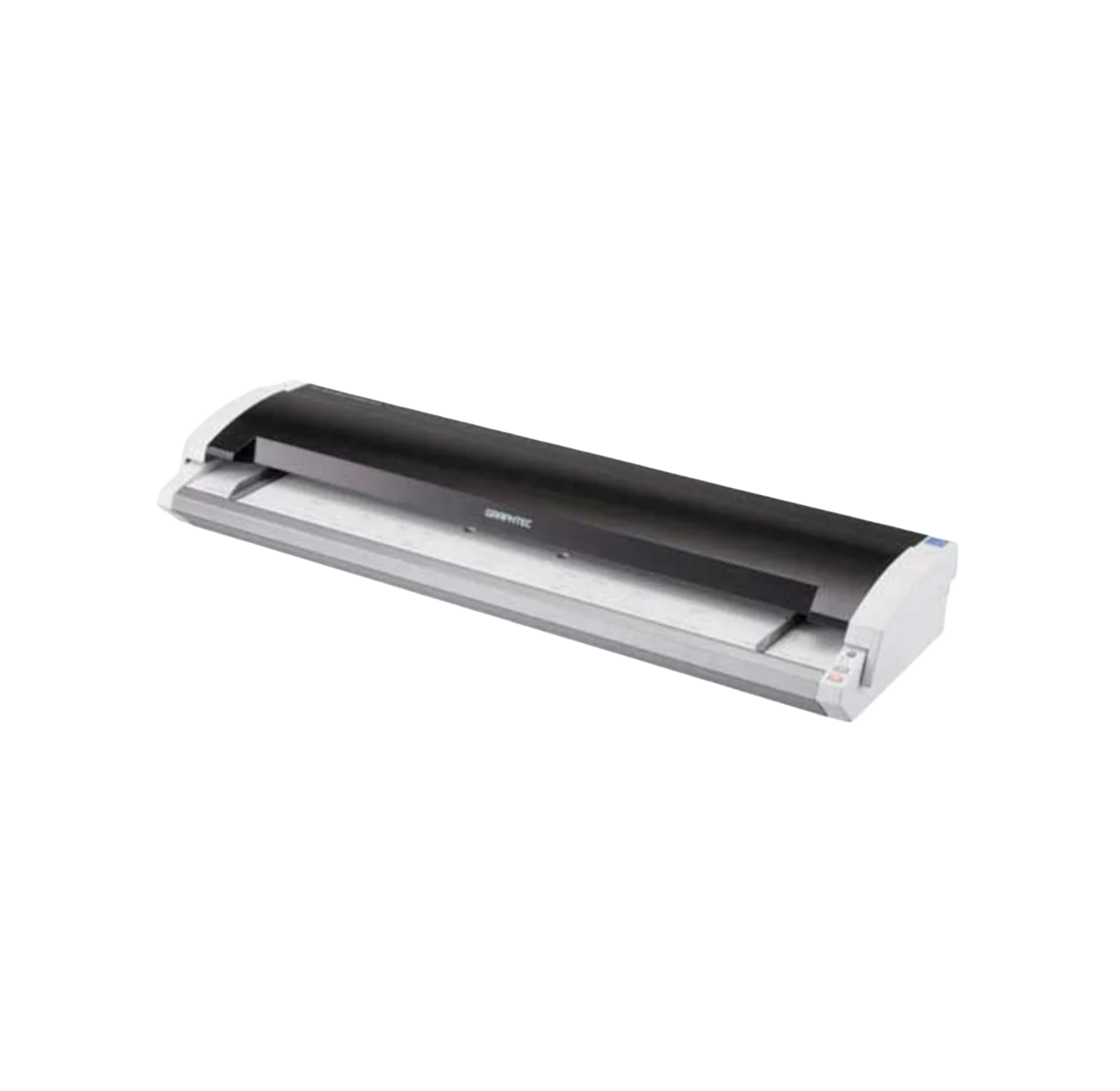

CSX500 Graphtec Scanner Series
Accurate Color Reproduction with high throughput :
-
Advanced Scanning Engine - LUXios
- LUXios High Speed
- LUXios Real Image
Three models to match all requirements - CIS (Contact Image Sensor) method in the scanner
- CSX500 Face-up scanning system
- Bundled Software 1 - Scanning Master Pro Color
- Bundled Software 2 - Scanning ART2 for Win
Features
LUXios High Speed
The fastest scanning speed in its class
Graphtec Corp has improved the total throughput time by combining the fastest feed speed with optimized 64 bit technology.
Graphtec scanners have the following two scanning mode.
(1) Scan only
(2) Scan and File
In the image processing, the scanned image is required to be edited before it is saved to the file. Graphtec scanners exhibit a faster throughput when it is used in this image processing way.
In other scanner, the “scan only” mode is not available. The editing of the image will be waiting until the scanned image data is saved.
Used PC for testing:
| CPU : | Intel Pentium D 920 (2.80GHz) 2MB x 2 L2 Cache |
|---|---|
| Memory : | 3GB(PC2-4200 DDR2 SDRAM) |
| HDD : | 250GB(SerialATA2 7200rpm) |
| OS : | Windows XP Service Pack 3 |
| Model | Scan method | 24-bits Color (A0/600dpi/1631MB) |
8-bits Gray (A0/600dpi/544MB) |
|---|---|---|---|
| CSX530-09 | Scan | Hi speed: 29 sec | Hi speed: 20 sec |
| CS610-11eN-PRO | Scan | Hi speed: 55 sec | Hi speed: 29 sec |
| CSX300-09 | Scan | Hi speed: 51 sec | Hi speed: 27 sec |
LUXios Real Image
Enhanced the color reproduction
Graphtec proprietary color matching technology enables production of images with accurate color reproduction and uniformity.
- Note,
- Color difference values are the evaluation of BERTL.
It has better color reproduction performance when the value is smaller number.
- Overall color is not good in other scanner. It is required the adjustment in an onerous way for matching the color.
- In the CSX series, the color can be matched by simple calibration.
Enhanced the image quality
Produces high-quality images by using a new digital processing system.
Reduced the ghost on the image
Produces images of sharp edges by using a new digital processing system.
The blurry image is not appeared around the characters and lines. The characters and lines have always sharp edge.
Supported the Abobe® RGB compatible color space
Color space of Abobe® RGB and sRGB
Support sRGB and Abobe® RGB compatible color space for wider color reproduction. The Abobe® RGB compatible mode supports a wider color space than sRGB. It improves color reproduction of the printed document.
sRGB ・ ・ ・it is a standard color space for use on various devices such as monitor, inkjet printer, camera, and others. The hue and saturation are specified to unify the differences in color reproduction between devices.
Adobe RGB ・ ・ ・it is an RGB color space developed by Adobe Systems. It was designed to encompass most of the colors achievable on CMYK color printer. It can be represented colors on the printed document that can not be represented in the sRGB.
Enhanced the Gray Scan mode
The brightness of color on the document needs to be detected for scanning the document in the grayscale mode. Triple light source in the CIS is used to create white light for scanning in the grayscale. Cyan, magenta and yellow colors are recognized in the same level as other colors.
When the setting of the Gray balance on the software is set to the ON, the triple light (R, G, B) souse is used to create white light for scanning the document. The detection of color brightness for green and magenta color is not emphasized. Cyan, magenta and yellow colors are recognized in the same level as other colors.
Features of CIS method
| Sharp image scanning | CSX500 series provide 1200 dpi (only the CSX550) optical resolution and 9600 dpi interpolated resolution allowing high-resolution and high-quality scanning. Further high-resolution and high-quality scanning is enhanced by Graphtec technology that improve contact between document and sensor. |
| No Warm-up time | The scanner is ready for scanning 10 seconds after power on, thus saving energy. |
| Power save | This feature meets several environmental standards. Power consumption is 3W or less when it is in power save mode. |
| Compact Design | Compact design saves space, operability and resource. |
| Method | CCD method | CIS method | GRAPHTEC CIS method |
|---|---|---|---|
| Image quality | Δ | Δ | O |
| Warm-up time | × | O | O |
| Power consumption | × | Δ | O |
| Compact dimensions | × | O | O |
High-speed scan
High-speed is provided with our long-established document feeding technology.
