The Perfect Partner For Digital Printing Companies

The partner for small and big digital printing companies. The Graphtec F-MARK2 is result of Graphtec's combined expertise in cutting solution with state-of-the-art sheet feeding automation, making it the ideal option for post process with print on demand. It is especially suitable for producing stickers, labels and custom heat transfer apparels with sheet media.

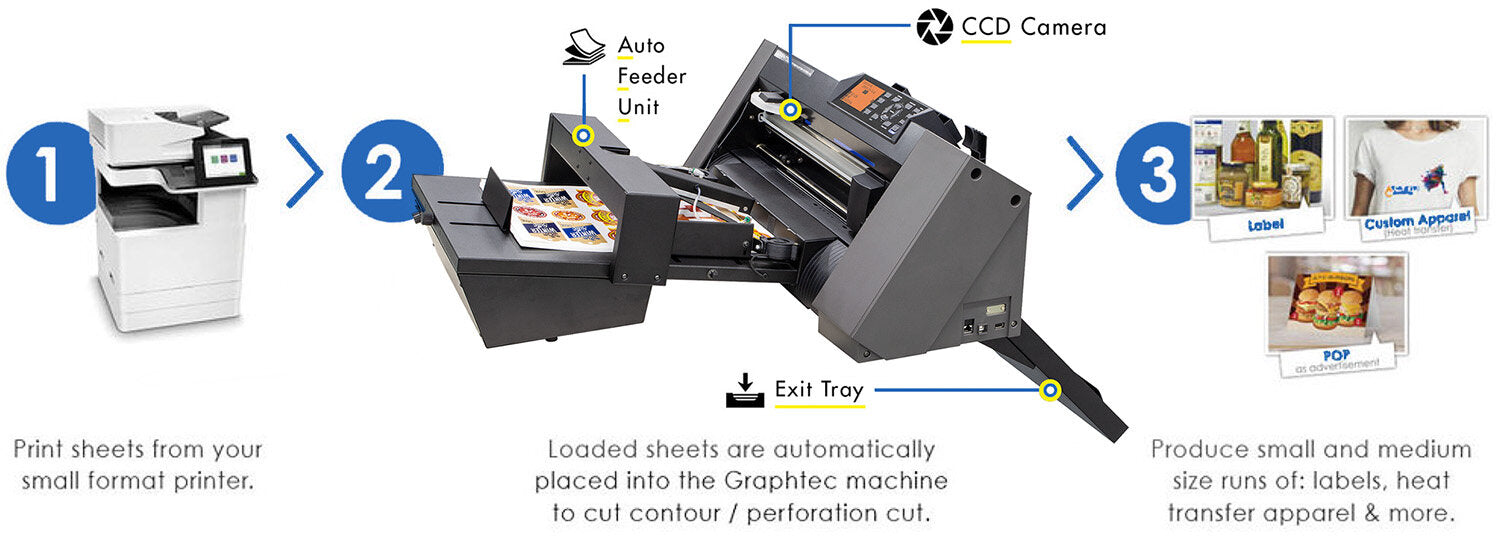

    • Hands-free and continuous sheet media loading and processing
    • Dedicated software ensures accurate alignment of contours and printed images
    • The camera quickly detects 2-point reference marks for alignment
    • Performs half cutting, simulated die cutting with perforation cutting and dashed line cutting


    • On-site installation by our dedicated technical support team
    • Hardware and software training by our expert trainers
    • 1-year warranty which includes on-site and TeamViewer support




Whole system
(Auto sheet feeder unit with cutter unit)

Supported standard sized media

A4 (297 x 210 mm), SRA4 (320 x 235 mm) (It is loaded with landscape orientation.)

A3 (297 x 420 mm), A3+ (typical 329 x 483 mm), SRA3 (320 x 450 mm)
(Loading is in portrait orientation.)

Interface to PC

Single port of USB (The USB hub to connect the auto feeder unit and cutter unit is included.)

Power source

100 to 240 V AC (It is required three power outlet.)

Operating environment

Temperature: 10 to 35°C
Humidity: 35 to 75 % RH (non-condensing)

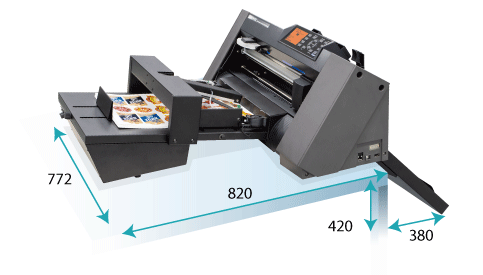

When the entire system is placed on the table
- Size of the upper part from the table:
   Approx. 772 (W) x 820 (D) x 313 (H) mm
- Size of the lower part from the table:
   Approx. 772 (W) x 380 (D) x 420 (H) mm
* The CE7000-40 is placed to edge of table. Refer the illustration of Dimensions.


Approx. 27 kg
(Cutter unit (*1) : 13 kg, Auto feeder unit: 10 kg, Exit tray: 4kg)

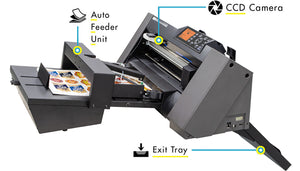

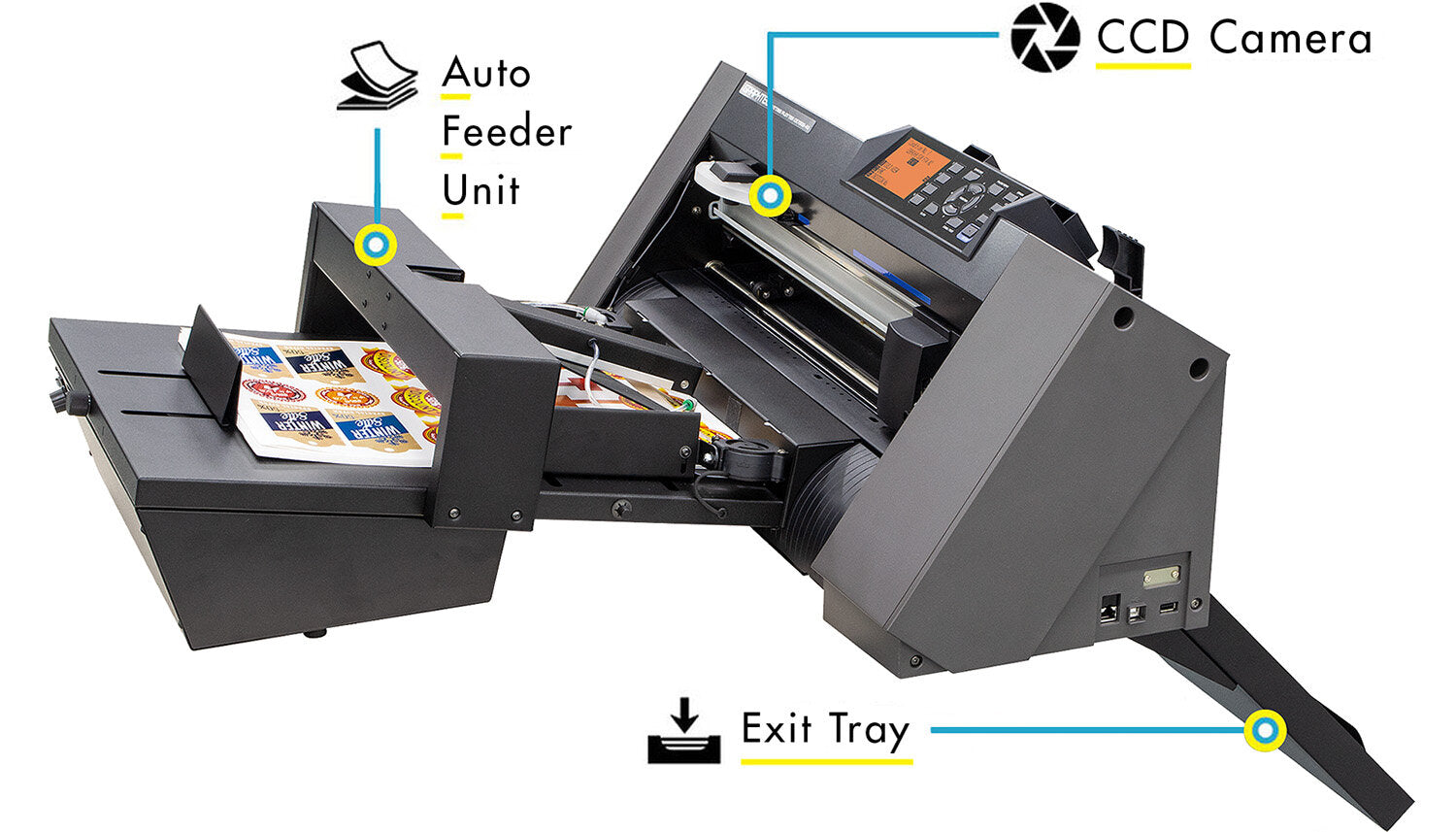

Auto sheet feeder unit

Supported media

Width: 279 to 370 mm, Length: 210 to 500 mm
(up to 700 mm when the option EXTENDER is installed.)

Up to 350 g/m2
(It is the grammage of the media that can be handled by the automatic feeder unit.)

Capacity of supply tray

200 Sheets or up to 35mm height
(It varies by the material, thickness and condition of media.)


USB 2.0

Power source

AC adapter, 100 to 240 V AC, Approx. 60 VA at output power

Compatible Standards

Main body : cNus(UL / cUL), CE mark, FCC

AC adapter : UL, cUL, CE mark, FCC, PSE, CCC

Digital Cutting Software

Supported OS

Windows 10 / 8.1 / 7

Contour cutting data format

ai (Illustrator version 8) and CorelDRAW eps
(The contour cutting data file contains only the contour cutting objects and reference marks and is saved in the specified format.)

Cutter unit
(CE7000-40) (*1)

Cutting speed

Max. 600 mm/s all directions


Max. 21.2 m/s2 (2.2 G) at 45° direction

Cutting force

Max. 4.41 N (450 gf) with CE7000-40


USB 2.0(Full Speed)

Power source

100 to 240 V AC

Power consumption

Up to 100W

Compatible Standards

UL, cUL, CE mark, RoHS Directive

(*) F-MARK works only with the dedicated software (included)
(*) Function of the CE7000-40 will be limited when the dedicated software is used.
