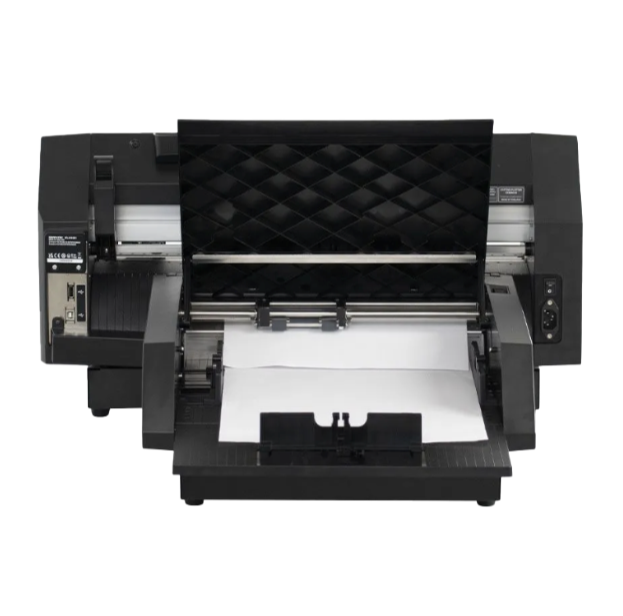

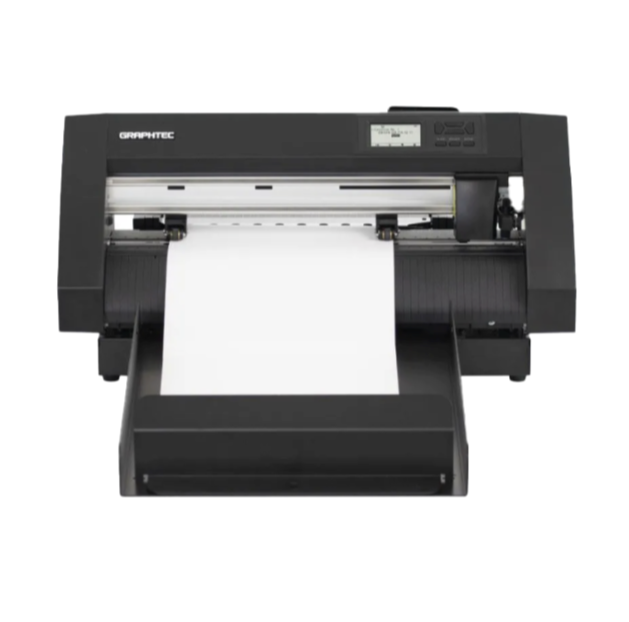

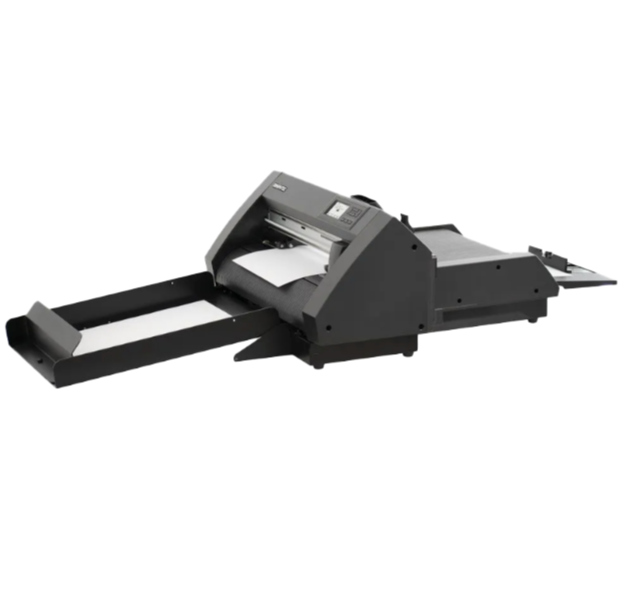

Graphtec Auto Sheet Feeder Unit ASF1-30

ASF is suitable for various design in small production of labels, stickers and custom-made merchandises.

Design ⇒ Print ⇒ Set the media… That’s it !

The operation of ASF1-30 is very easy. Just create the design and print it out on tack paper with laser printers, set it to ASF1-30.

Save labor and improve efficiency with Continuous Cutting Barcode

Data Link Barcode System enables cutting different data sequentially by detecting its linked data from Data Link Server or USB flash memory. It prevents cutting incorrect data and saves labor, increases production efficiency.

This function is available regardless of which printer or RIP software is used.

How to Generate Barcode for Continuous Cutting　

STEP

Check [Use Auto Sheet Feeder (ASF)] in Registration Marks panel

Open the Registration Marks panel in Cutting Master 5 or Graphtec Studio 2 and click on the check box of [Use Auto Sheet Feeder (ASF)].

This can prevent the software from generating Registration Marks or barcodes unavailable with ASF1-30.

STEP

Check [Use Barcode] in Registration Marks panel

Move on to BARCODE tab and click on the check box of [Use Barcode].

STEP

Click [OK] after confirming printer margins value

Confirm the values in PRINTER MARGIN tab and click [OK] if there is no problem.

*The margins of the printer driver selected in the application are initialized in PRINTER MARGIN tab.

*When changing the printer, acquire margin information by clicking [Get Printer Margins].

STEP

Barcode is generated

Registration Marks and a barcode are inserted after closing the Registration Marks panel.

 High productivity & accuracy guaranteed 2 Registration Marks Alignment

Other useful functions

Wireless function

Email notification function

The completion / error

Adopting touch panel

Auto Sheet Feeder Unit (ASF1-30) Standard accessories

Accessories contained with ASF1-30

• Connection cable
• Cable cover
• Extension tray

Accessories contained in the packaging box of the media output tray

• CE8000 base
• ASF1-30 base
• Base connecting parts (2 pcs)
• Media output tray
• Media Stopper

• Tray fixing bracket A / B (1 pc of each)
• Screws A (3 pcs)
• Screws B (12 pcs)

• Setup manual / Request for firmware and software updates

Dimensions

<45-degree use>

<Tabletop use>

• Tolerance: ±5 mm
• Frontward and backward the machine, please take enough space for operation.
• The installation size (area) when installing on a tabletop should be larger size than the product size.
• There is no specific recommended value for the height when installing on a tabletop.
