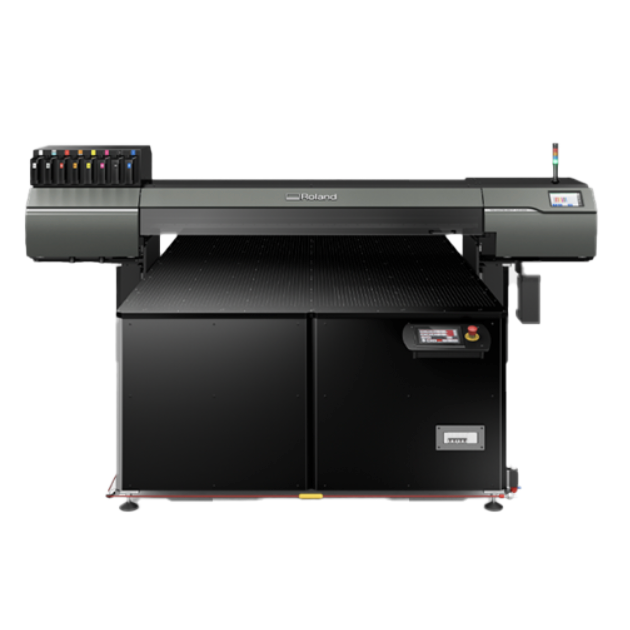

Roland L0-640 Flatbed UV Printers
The Ultimate in Versatile Print Production
Deliver high-quality vibrant and impactful graphics onto a vast range of objects and substrates, including metal, plastic, board, wood, canvas, vinyl, paper and much more besides, accommodating material up to 242 mm height.
Everything You Need to Succeed
Choose from 4 different models and sizes to suit your business
Power your workflow with our most intelligent engine yet
Get stunning results every time with economical Eco UV ink
Secure your investment with industry-leading support
High Quality and Versatile ink
Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.
CMYK
Get premium results
with high-quality
CMYK EUV ink
Gloss
Generate a multitud of
tangible effects, simulated
embossing and gloss finishes
White
Print high-opacity white
details or add sub-coats for
dark or transparent materials
Red and Orange
With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly
Primer
Apply primer to the print area
with precision for extensive
media compatibility
Certifications
GREENGUARD Gold
ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.
Broad Substrate Compatibility Print onto a virtually limitless range of flexible and rigid substrates and objects. |
|
Powerful Software Included VersaWorks 7 included, letting you print directly onto a variety of objects in a simple workflow. |
Printing Distance Mode Print directly onto irregular or curved objects with a high degree of accuracy. |
|
Time Saving Turnaround Switch to digital direct-to-object printing and eliminate long set-up and finishing times. |
Highlighted Features

Impressive Height and Weight Capabilities
Offering extraordinary application versatility, the LO/CO-i Series comes standard with a vacuum bed and can print onobjects up to 242 mm in height and 100 kg/m2 in weight.

High-Definition, High-Value-Added Expression
The LO/CO-i series achieves high-definition image quality through fine control of ink ejection. Moreover, special expressions such as textures and embossing are also possible.

Print Large Quantities of Smaller Items
Improve your productivity with a fast and efficient direct-to-object printing solution. The LO/CO-i Series lets you print unique details on several items in a single print run and with VersaWorks 7 features like variable data printing, you can individually personalise each item quickly and with minimal set-up.

From high-production models to economy models
You can choose the best model for your work. The LO series is equipped with two print heads in a staggered array for highspeed output. LO-640 outputs 5.0m2/h for CMYK + White printing.

Distance Mode
The LO/CO-i Series flatbed UV printers feature an innovative Distance Mode. This makes it possible to print onto convex, concave or irregular surfaces whilst maintaining excellent quality and sharpness.

Low-Temperature Adjustable UV-LED Lamps
Intensity of the UV-LED lamps is adjustable from VersaWorks enabling them to be switched on or off, or anywhere in between. This means Gloss, Primer and White can be used as an adhesive layer before a secondary process to apply glitter or foil and then cured with UV to seal.

Integrated Control Panel
The control panel of the LO/CO-i Series is integrated into the table to allow you to work more efficiently in less space.

Safety Control Features
An emergency stop perimeter around base (and on the side of the device) safeguards operators in the busiest of production environments. Plus, there is a signal beacon with variable alerts to clearly highlight the printer status.

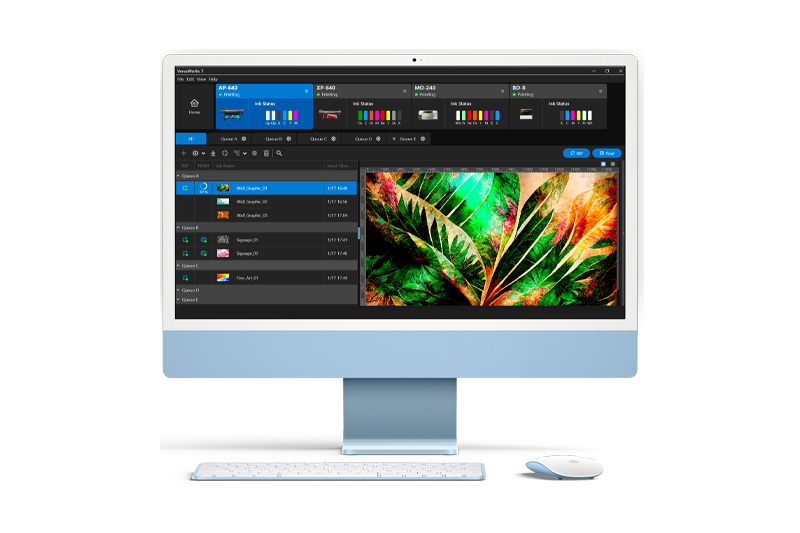

Powerful Software Included
The VersaOBJECT LO/CO-i Series is even more powerful when paired with Roland DG's advanced software solutions. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.
Create Value with Direct Printing
Introducing VersaOBJECT from Roland DG - a comprehensive solution that enables anyone to easily print directly onto 3D objects made of a variety of materials.
Specifications
Model | LO-640-F3 | LO-300-F2 | CO-640i-F3 | CO-300i-F2 | ||||
Printing Method | Piezo ink-jet method | |||||||
Attachable objects to be printed on | Width | Max. 1,625 mm | Max. 762 mm | Max. 1,625 mm | Max. 762 mm | |||
Thickness | Max. 242 mm | |||||||
Weight | Max. 100 kq/m2 | |||||||
Maximum Printing Width/Length | Max. 1,520 × 2,450 mm | Max. 656 × 1,450 mm | Max. 1,612 × 2,500 mm | Max. 749 × 1,500 mm | ||||
Ink |
Types |
ECO-UV (EUV5p) 750 ml pouch (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss, Primer) |
ECO-UV(EUV5) 500 ml cartridge(Cyan, Magenta, Yellow, Black, Red, Orange, Gloss, Primer) |
|||||
Colours | Eight colours (Cyan, Magenta, Yellow, Black, Red, Orange, White, Gloss) Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White) Seven colours (Cyan, Magenta, Yellow, Black, Red, Orange, White) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Red, White, Gloss) and Primer Six colours (Cyan, Magenta, Yellow, Black, White, Gloss) and Primer Six colours (Cyan, Magenta, Yellow, Black, White, Gloss) Four colours (Cyan, Magenta, Yellow, Black) |
|||||||
Ink-curing Unit | Built-in UV-LED lamp | |||||||
Printing Resolution (dots per inch) | Max. 1,200 dpi | Max. 1,440 dpi | ||||||
Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||||
Power-saving Function | Automatic sleep feature | |||||||
Power Requirements | 230V 16A 2P+E | |||||||
Power Consumption | During Operation (100% Vacuum) | Approx. 2.90 kW | Approx. 1.80 kW | Approx. 2.90 kW | Approx. 1.80 kW | |||
Sleep Mode | Approx. 0.08 kW | |||||||
Acoustic Noise Level | During Operation | 90 dB (A) or less | 80 dB (A) or less | 90 dB (A) or less | 80 dB (A) or less | |||
During Standby | 80 dB (A) or less | 70 dB (A) or less | 80 dB (A) or less | 70 dB (A) or less | ||||
Dimensions (Width x Depth x Height) |
2,901 mm × 3,457 mm × 1,560 mm |
2,037 mm x 2,430 mm x 1,560 mm |
2,815 mm × 3,399 mm × 1,469 mm (110.9 in. x 133.9 in. x 57.9 in.) |
1,928 mm × 2,384 mm × 1,469 mm (76.0 in. x 93.9 in x 57.9 in.) |
||||
Weight | 920 kg (2,029 lb.) | 526 kg (1,160 lb.) | 863 kg (1,903 lb.) | 487 kg (1,074 lb.) | ||||
Environment | During Operation (*1) | Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation) | ||||||
Not Operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation) | |||||||
Included Items | Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. |
