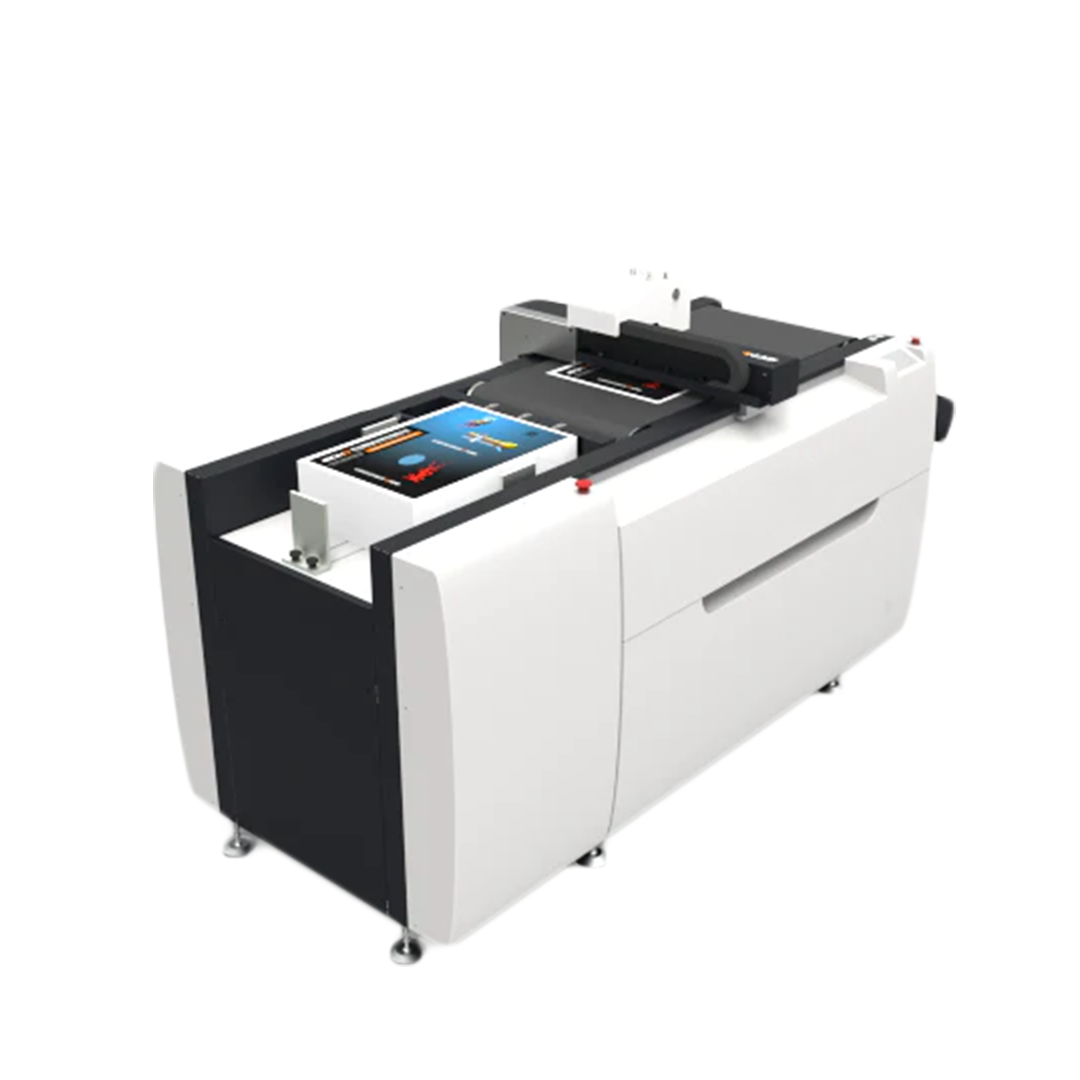

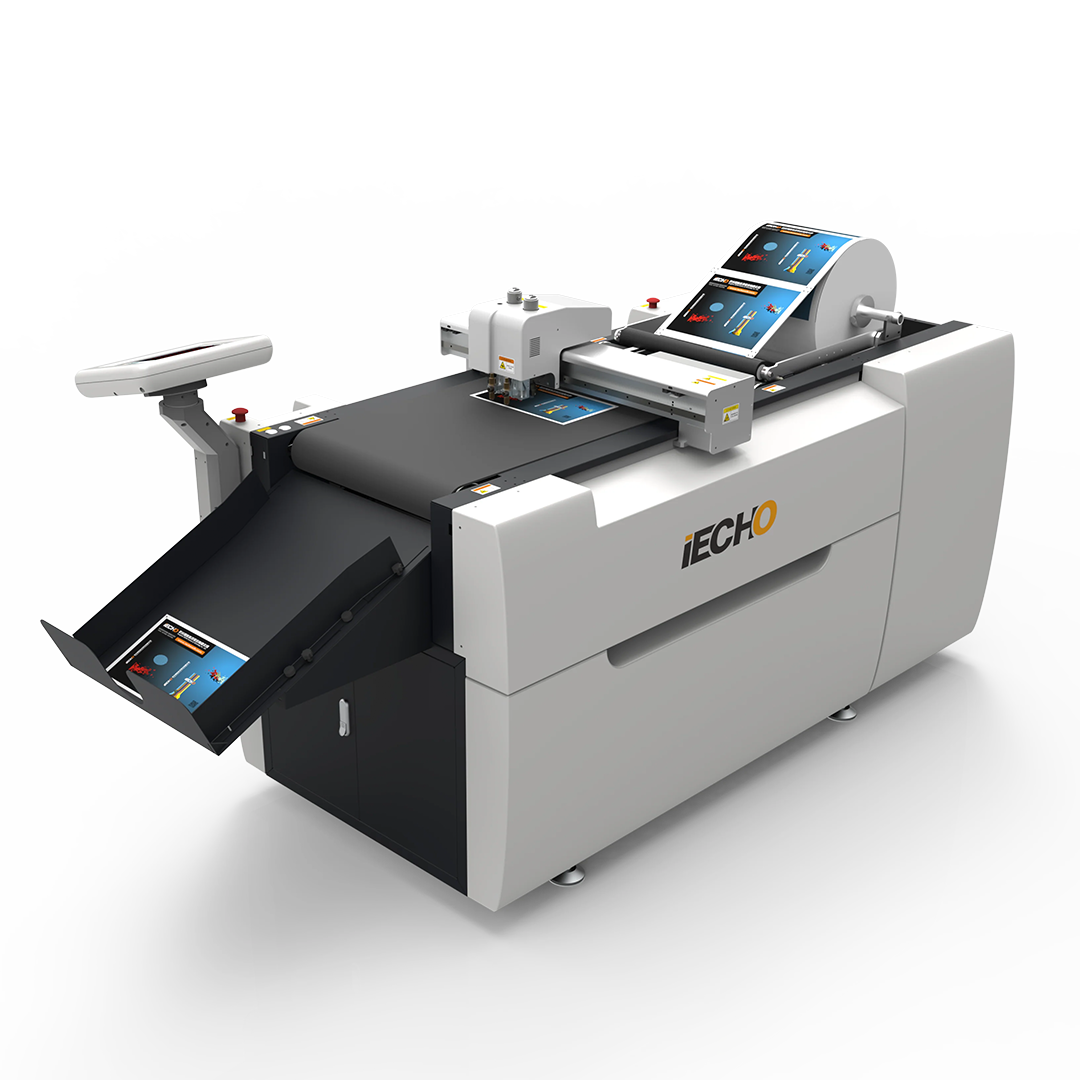

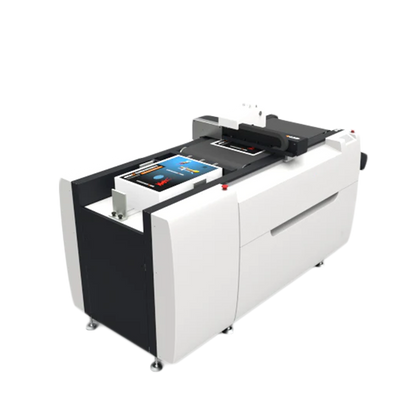

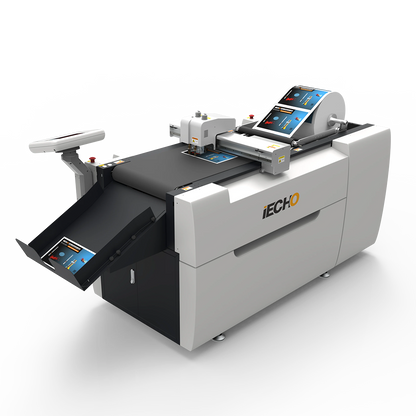

iECHO PK 75 Series Sheet Feed cutter

Model PK 75 PK 75 Plus

The Perfect Sheet Feed Cutting Equipment

The iECHO PK75 Series is a flatbed auto sheet feed cutting equipment for those in the advertising, manufacturing, gift personalisation, and packaging industry. With the ability to create die cut, kiss cut, creasing, and marking, the iECHO PK75 is an essential equipment in the various industries.

Product Brochure

Read the full specifications for the PK75 Series here

View full details

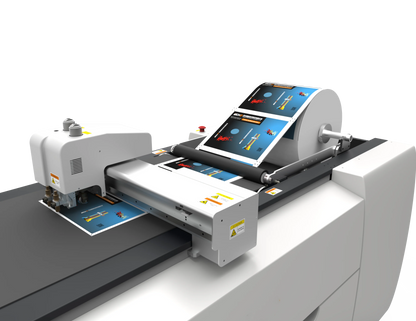

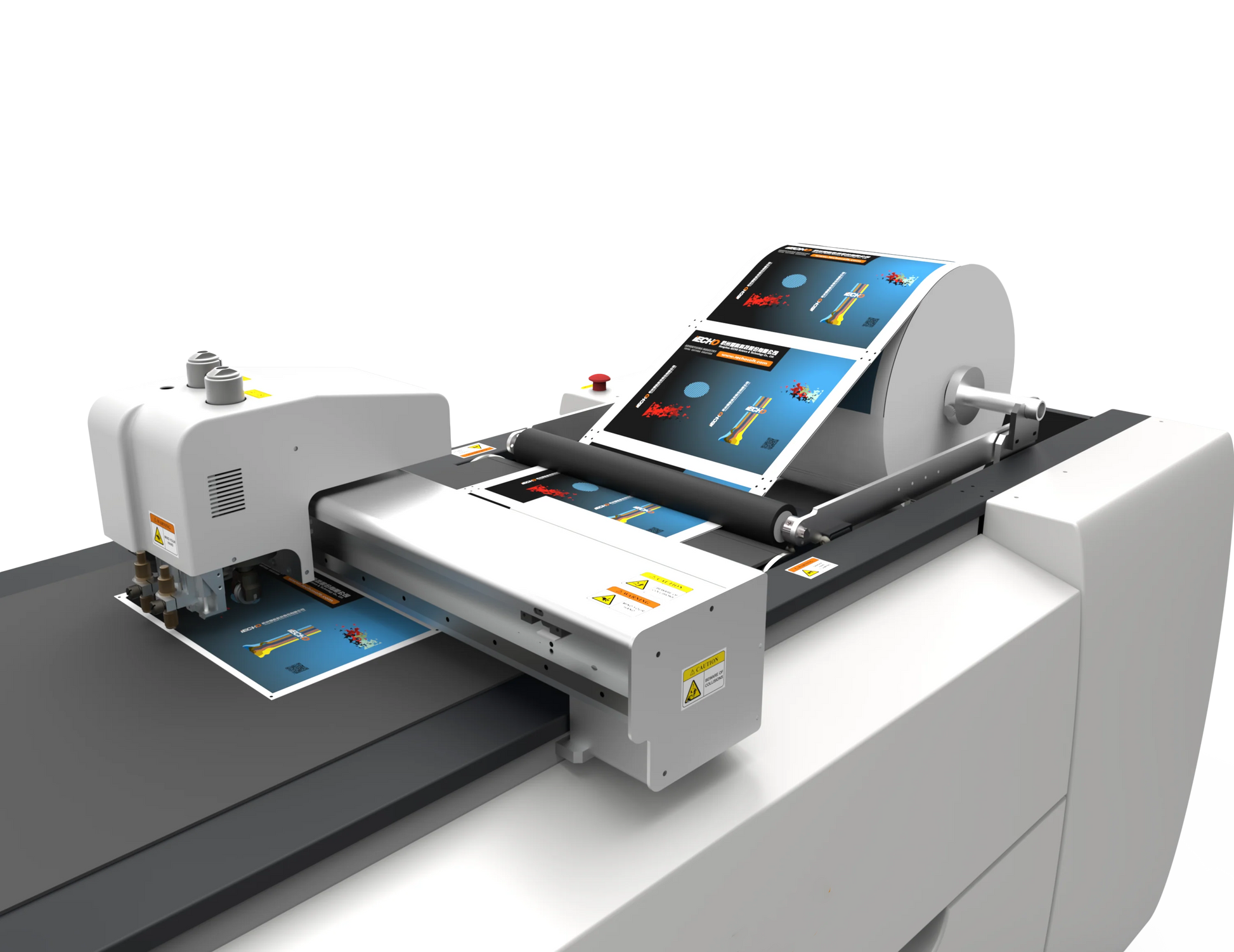

The iECHO PK 75 Series comes equipped with a fully automatic sheeting feeding system and vacuum suctioned conveyor belt system to make the iECHO PK 75 Series a truly a production and more efficient when it comes to free functioning digital cutting equipment for stickers, vinyl, and more.

The cost-effective smart cutting solution comes in 6 models - PK64, PK75, PK64 Plus, and PK75 Plus.

All PK Plus series grants business owners the ability to cut thicker materials/substrates such as kapaline, foam board and corrugated boards with the addition of an oscillating tool.

The most efficient cutting solution to help business owners increase productivity.

Machine Series	PK75	PK75 Plus
Cutting Area	700 x 530 mm	700 x 530 mm
Floor Area	2600 x 1000 x 1150 mm	2600 x 1000 x 1150 mm
Cutting Tool	Universal Cutting Tool, Creasing Wheel, Kiss Cut Tool	Oscillating Tool, Universal Cutting, Creasing Wheel, Kiss Cut Tool
Cutting Material	Vinyl, Art Card, PP Paper, Reflective Material	KT Boar d, PP P aper, Foam Board, Vinyl, Reflective Material, Art Card, Plastic Sheet, Corrugatated Board, Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker
Cutting Thickness	<2mm	<6mm
Suction System	Vacuum System	Vacuum System
Max Cutting Speed	1000 mm/s	1000 mm/s
Data Format	PLT, DXF, HP/GL	PLT, DXF, HP/GL
Voltage	220v +- 10% 50Hz	220v +- 10% 50Hz
Power	4KW	4KW
