iECHO PK 64 Series Sheet Feed Cutter

Model PK64 PK64 Plus

The Perfect Equipment For Your Marketing Campaigns

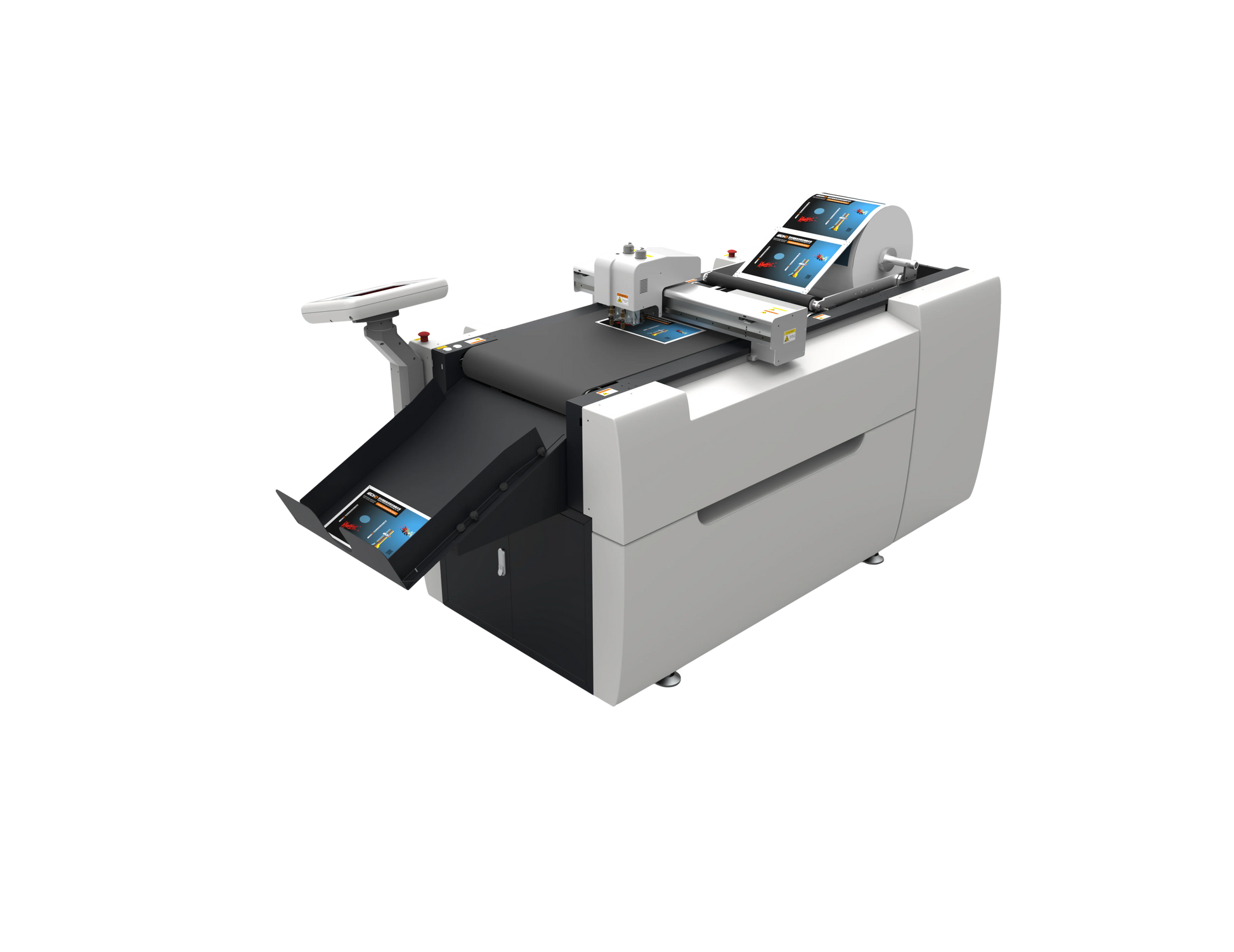

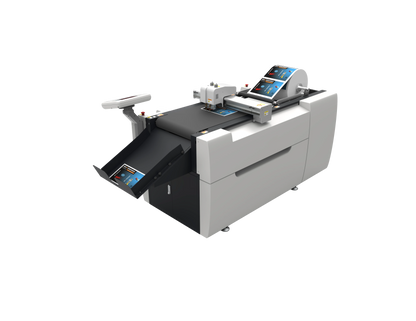

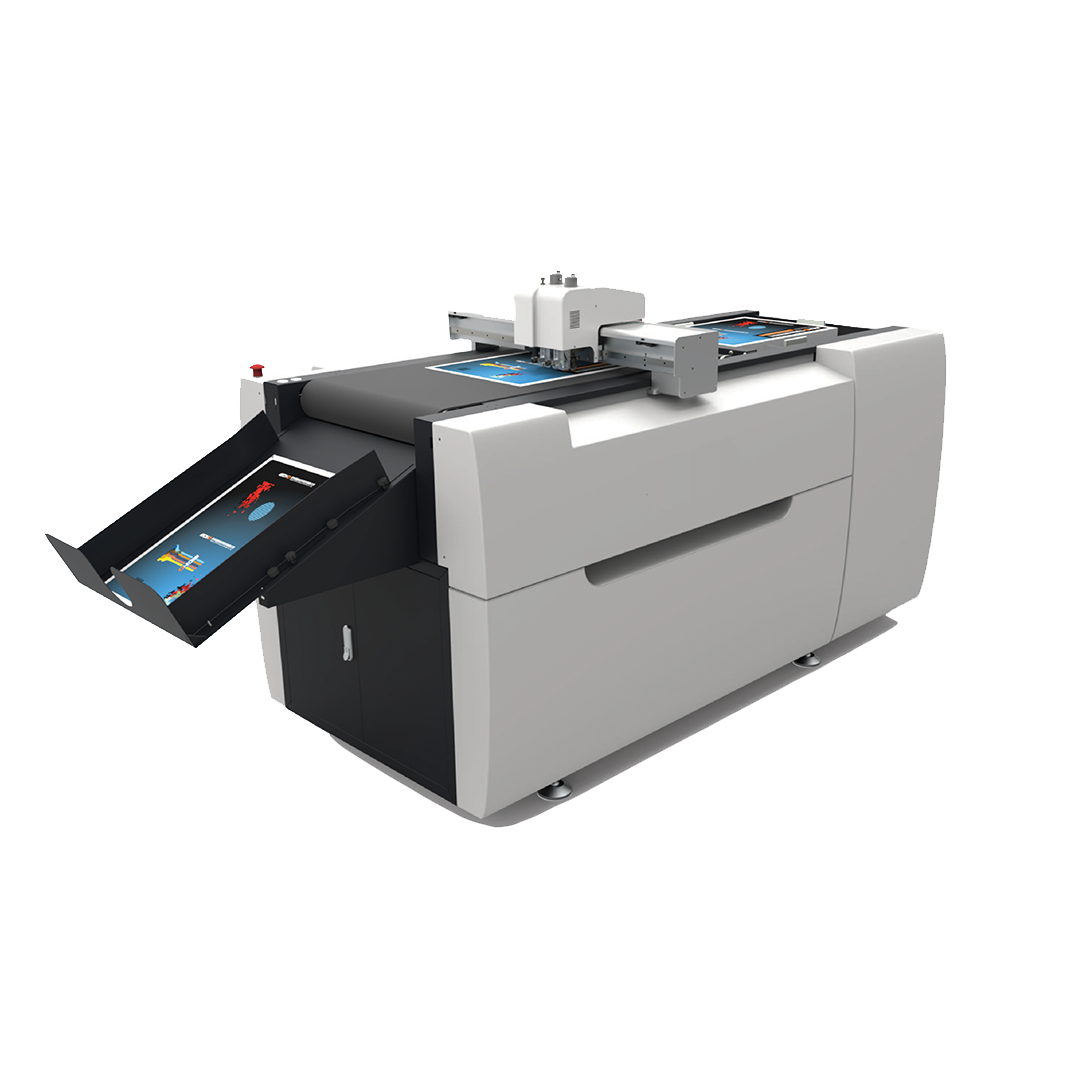

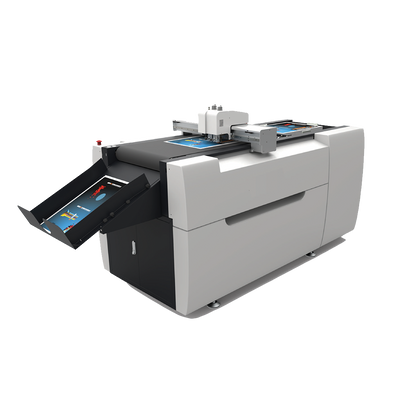

The iECHO PK 64 Series is a flatbed Auto Feed cutting equipment for those in the advertising, manufacturing, gift personalization, and packaging industry. With the ability to create die cut, kiss cut, creasing, and marking, the iECHO PK 64 is an essential equipment in the various industries.

Product Brochure

Read the full specifications for the PK64 Series here

View full details

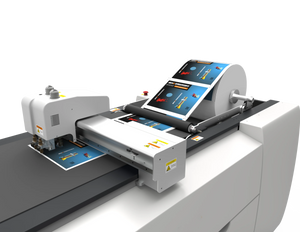

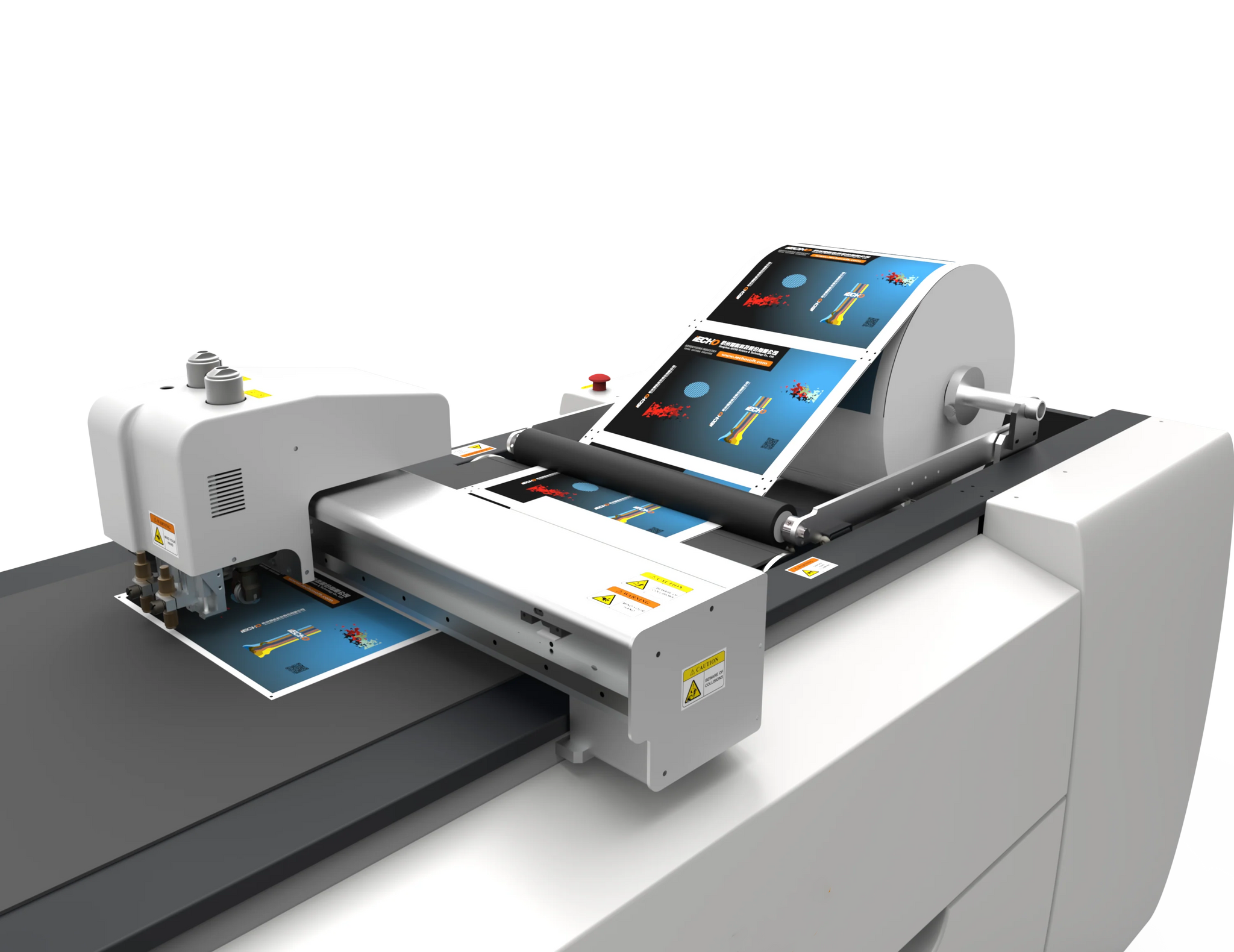

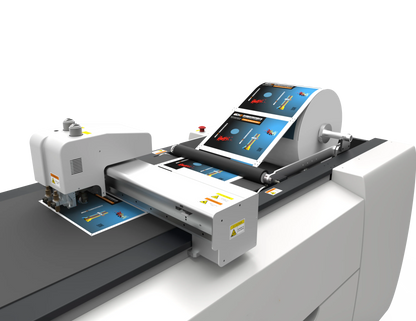

The iECHO PK 64 Series comes equipped with a fully automatic sheeting feeding system and vacuum suctioned conveyor belt system to make the iECHO PK 64 Series a truly hands-free functioning digital cutting equipment for stickers, vinyl, and more.

The cost-effective smart cutting solution comes in 6 models - PK64, PK75, PK64 Plus, and PK75 Plus. While the PK64 series have the ability to cut Super A3 dimensions, the larger format PK129 has the ability to cut up to A0 dimensions.

All PK Plus series grants business owners the ability to cut thicker materials/substrates such as kapaline/foam and corrugated boards with the addition of an oscillating tool.

The most efficient cutting solution to help business owners increase productivity.

Machine Series	PK64	PK64 Plus
Cutting Area	600 x 400 mm	600 x 400 mm
Floor Area	2350 x 900 x 1150 mm	2350 x 900 x 1150 mm
Cutting Tool	Universal Cutting Tool, Creasing Wheel, Kiss Cut Tool	Oscillating Tool, Universal Cutting Tool, Creasing Wheel, Kiss Cut Tool
Cutting Material	Vinyl, Art Card, PP Paper, Reflective Material	KT Boar d, PP Paper, Foam Board, Vinyl, Reflective Material, Art Card, Plastic Sheet, Corrugatated Board, Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker
Cutting Thickness	<2mm	<6mm
Suction System	Vacuum System	Vacuum System
Max Cutting Speed	1000 mm/s	1000 mm/s
Data Format	PLT, DXF, HP/GL	PLT, DXF, HP/GL
Voltage	220v +- 10% 50Hz	220v +- 10% 50Hz
Power	4KW	4KW
